Add GitHub Oauth authorization with Pages Functions

In most applications we use, there is usually an option to log in or sign up with a 3rd party application like Google, Twitter or GitHub. These options are powered by OAuth, which is an open standard for access delegation, commonly used as a way for internet users to grant websites or applications access to their information on other websites but without giving them the passwords.

In this tutorial, you will learn how to build authentication into your application using OAuth, GitHub, and handle server requests using Pages Functions and GitHub credentials.

You’ll build an authorization flow to allow users to sign in with GitHub to your application. Once they’ve signed in, you’ll use Pages Functions and Workers KV to store the user’s information and make an authorized GitHub API request on their behalf.

You will then encode the user information gotten from GitHub using JSON Web Tokens(JWTs) which allows you to share user secrets securly by encrypting them with a secret key. Then finally show a list of their repositories in a web page.

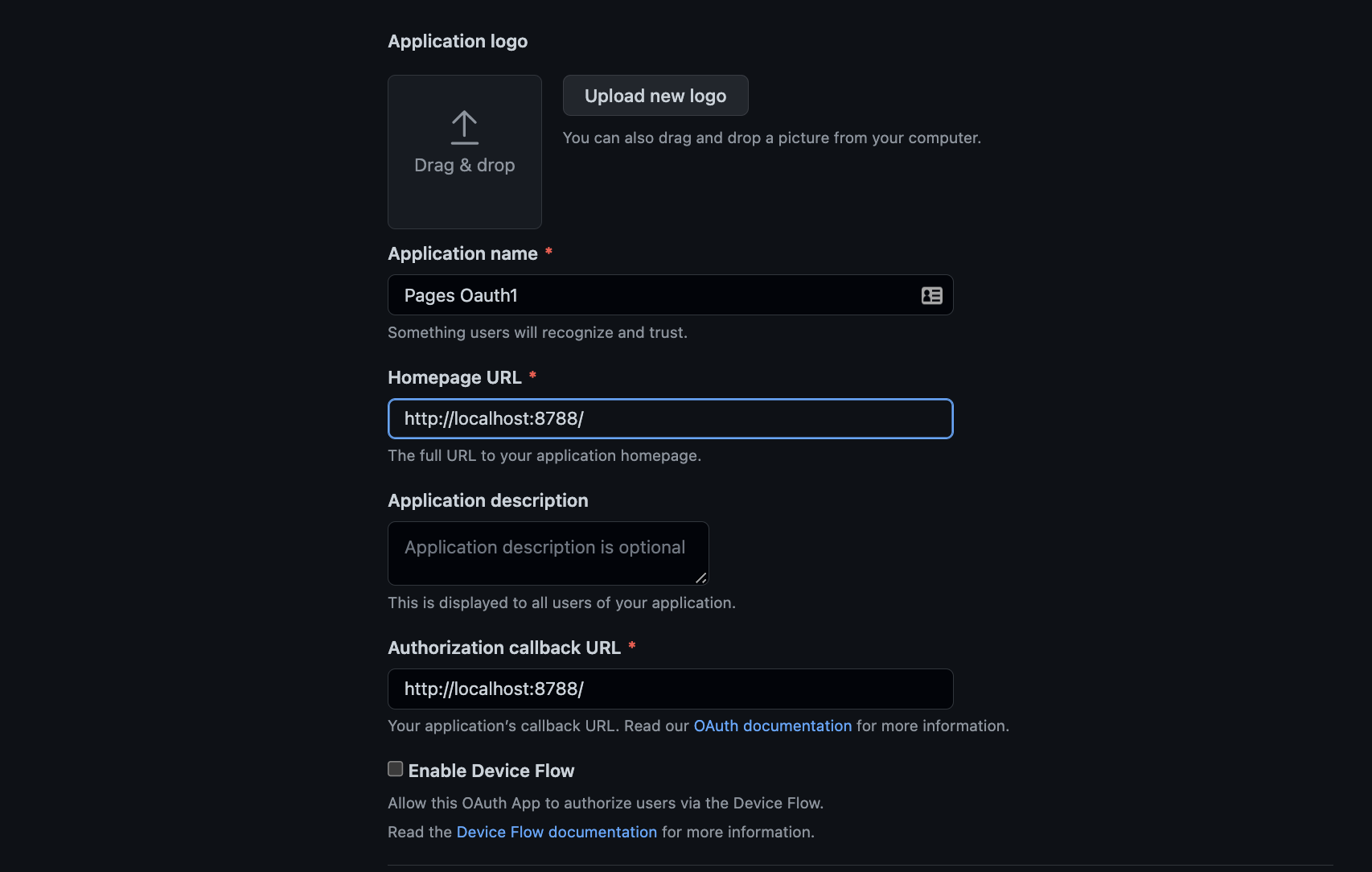

GitHub OAuth app set up

Live example

The source code for this application is available on GitHub. It is a live Pages application with a live demo available, too.

Setup

To begin, create a client/index.html file at the root of your project to serve the static part of your application. Then in the same client directory, create an index.js file; this is where you will have your client-side logic.

Before you continue, copy the following content into client/index.html:

client/index.html
<!DOCTYPE html>

<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <link rel="stylesheet" href="style.css">
  <title>Document</title>

</head>

<body>
  <section>
    <a class="btn">Authorize with GitHub</a>
    <button class="btn">Fetch repos</button>
  </section>
  <script src="./index.js" type="module" ></script>

</body>

</html>

To style the elements you have in your HTML file, create a client/style.css file and add code below:

client/style.css
body {
  margin: 40px auto;

}



section {
  display: flex;
  align-items: center;
  justify-content: center;

}



.btn {
  margin: 20px;
  font-family: 'Courier New', Courier, monospace;
  text-transform: uppercase;
  text-decoration: none;
  font-size: 16px;
  background-color: #fbeee088;
  border: 2px solid #111;
  border-radius: 5px;
  box-shadow: #111 4px 4px 0 0;
  color: #111;
  cursor: pointer;
  font-weight: 600;
  padding: 0 30px;
  line-height: 50px;

}



.btn:hover {
  background-color: #fff;

}



.btn:active {
  box-shadow: #111 2px 2px 0 0;
  transform: translate(2px, 2px);

}

Before setting up your client site functions, you will need to create a config.js file at the root of your project to handle all your GitHub app credentials. Then, you will export these credentials to access them anywhere in your application.

/config.js
var client_credentials = {
  CLIENT_ID: "********",
  REDIRECT_URL: "http://localhost:8788/",
  AUTHORIZATION_ENDPOINT: "https://github.com/login/oauth/authorize",
  TOKEN_ENDPOINT: "https://github.com/login/oauth/access_token",
  RESOURCE_ENDPOINT: "https://api.github.com/",

};



var server_credentials =  {
  CLIENT_ID: "********",
  CLIENT_SECRET: "***********",
  REDIRECT_URL: "http://localhost:8788/",
  AUTHORIZATION_ENDPOINT: "https://github.com/login/oauth/authorize",
  TOKEN_ENDPOINT: "https://github.com/login/oauth/access_token",
  RESOURCE_ENDPOINT: "https://api.github.com/",

};



export {
  client_credentials,
  server_credentials
}

Developing locally with Wrangler

Wrangler enables you to run your entire application locally and supports secrets, environment variables, KV and Durable Objects.

To be able to install Wrangler you will need a package.json file. At the root of your run npm init -y to genrate a package.json file, this will allow you install more packages later in this tutorial.

Set up Wrangler in your project by running npm install wrangler@beta at the root of your project. You can see your project locally by running the following command:

npx wrangler pages dev ./client
# client is your output directory

Get Authorization from OAuth App

The HTML file contains a script that links it to the index.js file, where the client-side JavaScript for getting authorization and handling the code coming from your OAuth app will live.

Before you continue, you will need to install query-string package, which allows you to parse and stringify URL query strings. Do this by running npm install query-string at the root of your project.

In your index.js file, import the config.js file and qs from the query-string library, then set up your authorization logic.

First, you will need to access your OAuth app through the AUTHORIZATION_ENDPOINT then your app will respond with a code that you will then send to the server.

client/index.js
import  client_credentials from "../config";

import qs from "query-string";



function  getAppauthorization() {
  const oAuthQueryParams = {
    response_type: "code",
    scope: "user public_repo",
    redirect_url: client_credentials.REDIRECT_URL,
    client_id: client_credentials.CLIENT_ID,
    state: "random_state_string",
  };


  const query = qs.stringify(oAuthQueryParams);
  const url = `${client_credentials.AUTHORIZATION_ENDPOINT}?${query}`;
  const loginLink = document.querySelector("a");
  loginLink.setAttribute("href", url);

}




window.onload = function () {
    getAppauthorization()
};

From the code block above, you will notice we called an onload method to the window, and we do this so the functions will be fired when the whole page has loaded, including all dependent resources such as stylesheets and images.

Notice the response type is a code; you will need to send this code to the server to be able to get the access token. We need to get the response code from the URL to do this. In the same file create a handleCode function and update the window.onload function

client/index.js
function handleCode(){
  const parsedQuery = qs.parseUrl(window.location.href)


  if(parsedQuery.query.code){
    sendCodeToServer()
  }else{
    throw new Error("No code found in url")
  }


  async function sendCodeToServer(){
    const server = "/api/code"
    try {
      const res = await fetch(server,{
        method: "POST",
        body: JSON.stringify({
          code: parsedQuery.query.code,
          state: parsedQuery.query.state
        }),
        headers:{'Content-Type' :'application/json' }
      })

      const data = await res.json()
      window.location.href = client_credentials.REDIRECT_URL;

    } catch (error) {
      console.log(error)
    }
  }

}


window.onload = function () {
    getAppauthorization();
    handleCode();
};

Your /client/index.js file should now look like this:

client/index.js
import  client_credentials from "../config";

import qs from "query-string";



function  getAppauthorization() {
  const oAuthQueryParams = {
    response_type: "code",
    scope: "user public_repo",
    redirect_url: client_credentials.REDIRECT_URL,
    client_id: client_credentials.CLIENT_ID,
    state: "random_state_string",
  };


  const query = qs.stringify(oAuthQueryParams);
  const url = `${client_credentials.AUTHORIZATION_ENDPOINT}?${query}`;
  const loginLink = document.querySelector("a");
  loginLink.setAttribute("href", url);

}



function handleCode(){
  const parsedQuery = qs.parseUrl(window.location.href)


  if(parsedQuery.query.code){
    sendCodeToServer()
  }else{
    throw new Error("No code found in url")
  }


  async function sendCodeToServer(){
    const server = "/api/code"
    try {
      const res = await fetch(server,{
        method: "POST",
        body: JSON.stringify({
          code: parsedQuery.query.code,
          state: parsedQuery.query.state
        }),
        headers:{'Content-Type' :'application/json' }
      })

      const data = await res.json()
      window.location.href = client_credentials.REDIRECT_URL;

    } catch (error) {
      console.log(error)
    }
  }

}


window.onload = function () {
    getAppauthorization();
    handleCode();
};

In the code block above, you will notice that we send the code to /api/code. This is the route where our serverless code will be.

Setting up Server with Functions

Cloudflare Pages offers Functions which enable you to run server-side code to enable dynamic functionality without running a dedicated server. You can handle tasks like authentication, querying databases or other applications.

In this tutorial, we will be using Functions to handle exchanging our code for an Access Token, signing JWTs, authenticating users, and querying GitHub for resources using the authenticated user’s details.

To setup your Functions first create a functions folder. Functions are linked to the functions directory and conveniently construct URL request handlers in relation to the functions file structure. For example, the functions/about.js file will map to the /about URL. Refer to the Functions routing documentation for more information.

The code from your OAuth App is sent to /api/code; you must create a functions/api/code.js file at the root of your project. Your file structure should look like this now:

├── ...
├── functions
|   └── api
|         └── Code.js
├── Client
|   └── index.html
|   └── index.js
├── config.js
└── ...

The handleCode function will send POST requests, which means that the functions/api/code.js file needs to export an onRequestPost handler:

functions/api/code.js
/**
 * POST /api/code
 */



export async function onRequestPost(context) {
  /** TODO:
   * 1. Exchange code for access token
   * 2. Use access token to fetch user info
   * 3. encode user info as JWT
   */

}

The context parameter is an object filled with several values of potential interest. For this example, you only need the request and env , properties:

In your client-side JavaScript code, you made a POST request to /api/code, sending the GitHub authorization code. In this file, you will set up the corresponding function, using onRequestPost.

In that function, you can access the authorization code by parsing the request body as JSON. You can then pass the code to a function, to exchange it for a GitHub access token:

functions/api/code.js
export async function onRequestPost({ request, env }) {
  try {
    const body = await request.json();
    const token = await exchangeCodeForToken(body.code);
  } catch (error) {
    console.log(error);
    return new Response(JSON.stringify({ error }));
  }

}

Exchanging the code from your OAuth app for Access token

In the same code.js file, you will create an async function called exchangeCodeForToken that will take the code as an argument. You will need to use the config file parameters to query the TOKEN_ENDPOINT and send the other parameters as the body. The response to this will be an object, you will use the query string package to parse the response.

Import qs from “query-string” and called the .parse method on the response; you can get the access token by getting the value of access_token. As seen in the code block below:

functions/api/code.js
import qs from "query-string";



//...



async function exchangeCodeForToken(code) {
  const TokenURL = server_credentials.TOKEN_ENDPOINT;
  const oAuthQueryParams = {
    grant_type: "authorization_code",
    redirect_url: server_credentials.REDIRECT_URL,
    client_id: server_credentials.CLIENT_ID,
    client_secret: server_credentials.CLIENT_SECRET,
    code: code,
  };


  const res = await fetch(TokenURL, {
    body: JSON.stringify(oAuthQueryParams),
    method: "POST",
    headers: { "Content-Type": "application/json" },
  });


  const data = await res.text();
  const parsedData = qs.parse(data);
  return parsedData.access_token;

}

Use the Access token to fetch user information

Now that you have the access token, you can use it to query user information. As mentioned, your config file will be your access point to GitHub. Create a fetchUser function, and this will take the access token as an argument.

In the fetchUser function, you will need to construct a user URL using your RESOURCE_ENDPOINT and a user parameter like server_credentials.RESOURCE_ENDPOINT + "user";. The authorization object value will be your Access token. The onRequestPost function will need to be updated to await your fetchUser function.

functions/api/code.js
export async function onRequestPost({ request, env }) {
  try {
    const body = await request.json();
    const token = await exchangeCodeForToken(body.code);
    const user = await fetchUser(token);
  } catch (error) {
    return new Response(JSON.stringify({ error }));
  }

}



async function exchangeCodeForToken(code) {
  const TokenURL = server_credentials.TOKEN_ENDPOINT;
  const oAuthQueryParams = {
    grant_type: "authorization_code",
    redirect_url: server_credentials.REDIRECT_URL,
    client_id: server_credentials.CLIENT_ID,
    client_secret: server_credentials.CLIENT_SECRET,
    code: code,
  };


  const res = await fetch(TokenURL, {
    body: JSON.stringify(oAuthQueryParams),
    method: "POST",
    headers: { "Content-Type": "application/json" },
  });


  const data = await res.text();
  const parsedData = qs.parse(data);
  return parsedData.access_token;

}



async function fetchUser(token) {
  const userURL = server_credentials.RESOURCE_ENDPOINT + "user";
  const res = await fetch(userURL, {
    headers: {
      Authorization: `token ${token}`,
      /* A User-Agent is required to let the servers identify the application. The value can be unqiue
      when communicating with 3rd party API like GitHub using Pages Functions add a user agent.
      To learn more about this check https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/User-Agent
      */
      "User-Agent": "Pages Functions",
    },
  });


  const data = await res.json();
  return data;

}

Encode User information with a JSON Web Token

A user’s information is sensitive and will be used on the client-side. To ensure that this information is secure and isn’t manipulated by a 3rd party, we will use JSON Web Tokens (JWTs).

A JSON Web Token is a proposed Internet standard for creating data with an optional signature, and optional encryption, whose payload holds JSON that asserts some number of claims to resources.

We will use Cloudflare Worker JWT, a lightweight NPM package for JWT implementation. This package can be installed by running npm i -D @tsndr/cloudflare-worker-jwt at the root of your project.

After installing, in /api/code import jwt from the the Cloudflare-Worker-JWT package to encode and decode the JWT.

JWTs are usually created by signing a Payload with a secret. The payload will be the user information, and you will assign the secret key. In this case, we will define a secret key, in your .env file.

.env
myVerySecretString = "*********"

Your secret key can be any set of strings and will be available in the code.js file, using env.

functions/api/code.js
import jwt from "@tsndr/cloudflare-worker-jwt";

import server_credentials from "../config";

import qs from "query-string";



export async function onRequestPost({ request, env }) {
  try {
    const body = await request.json();
    console.log(body)
    const token = await exchangeCodeForToken(body.code);
    const user = await fetchUser(token);
    const jwtencoded = await encodeJWT(user, env.myVerySecretString);
    return new Response(JSON.stringify({ jwtencoded }),
    {
      headers: {
        "Content-Type": "application/json",
      }
    });
  } catch (error) {
    console.log(error);
    return new Response(JSON.stringify({ error }));
  }

}



//....



async function encodeJWT(user, token) {
  const jwtPayload = {
    login: user.login,
    id: user.id,
    avatar_url: user.avatar_url,
  };

  return jwt.sign(jwtPayload, token);

}

Cache user information in Workers KV

Workers KV is a global low-latency, key-value data store. It can be used to cache information that has been received from a server, and in this case, you will use it to cache user information.

You will use the env argument to access your Workers KV store. You can set data to Workers KV using the .put method. which takes the first value as a string which is callled a key, and then the next value can be a string as well but in this case JSON which is called a value.

In the server we want to use the user ID as the key, and stringify the user information and access token as the value.

Since the user information is cached in Workers KV, we will not need to make any network request to GitHub for the user info if we want to fetch for repos, as you will see in the next section. With our user information cached in Workers KV, we can use it to an authorized request to GitHub for a list of the user’s repositories.

functions/api/code.js
export async function onRequestPost({ request, env }) {
  try {
    const body = await request.json();
    const token = await exchangeCodeForToken(body.code);
    const user = await fetchUser(token);
    const jwtencoded = await encodeJWT(user, myVerySecretString);


    await env.kv_userDatabase.put(
      `${user.id}`,
      JSON.stringify({ user, token })
    )


    console.log(jwtencoded);
    return new Response(JSON.stringify({ jwtencoded }),
    {
      headers: {
        "Content-Type": "application/json",
      }
    });
  } catch (error) {
    console.log(error);
    return new Response(JSON.stringify({ error }));
  }

}

To access your Workers KV namespace when using Wrangler locally, update your run command to:

# Bind to a KV store
npx wrangler pages dev ./client --kv KV_NAMESPACE

Use JWT for client login validation and fetching User Repos

While you can use JWTs for validating users, you can also use them to know when a user is logged in or not and then give them access to other parts of your application based on this JWT.

In your application, you can do this by setting the JWT to localStorage. In the client/index.js file, you will update your handleCode function to set the encoded JWT from the server to a JWT value:

client/index.js
function handleCode(){
  const parsedQuery = qs.parseUrl(window.location.href)


  if(parsedQuery.query.code){
    sendCodeToServer()
  }else{
    throw new Error("No code found in url")
  }


  async function sendCodeToServer(){
    const server = "/api/code"
    try {
      const res = await fetch(server,{
        method: "POST",
        body: JSON.stringify({
          code: parsedQuery.query.code,
          state: parsedQuery.query.state
        }),
        headers:{'Content-Type' :'application/json' }
      })

      const data = await res.json()
      localStorage.setItem("jwt", data.jwtencoded);
      window.location.href = client_credentials.REDIRECT_URL;

    } catch (error) {
      console.log(error)
    }
  }

}

Allowing access to routes based on JWT

Since we authenticate using a JWT, we can create some restrictions based on the presence of this JWT. For example, in the client/index.html file, we have a “Fetch repos” button, and we can make this button inaccessible if the JWT isn’t present.

To do this, we’ll create a new function that will conditionally show the “Fetch repos” button based on the presence of a jwt key in localStorage. If the jwt is found, we’ll add a new event listener that calls the fetchRepos function when the button is clicked:

client/index.js
function ProtectedTask(){
  const requestButton = document.querySelector("button");


  requestButton.style.display = "none";


  if (localStorage.getItem("jwt")) {
    requestButton.style.display = "block";
    requestButton.addEventListener("click", function () {
      fetchRepos();
    });
  }

}

Make a new fetchRepos function, which makes a request to the /api/repos endpoint, using jwt as part of the Authorization header:

async function fetchRepos() {
  const server = "/api/repos";
  try {
    const res = await fetch(server, {
      headers: { Authorization: `Bearer ${localStorage.getItem("jwt")}` },
    });


    const data = await res.json();
    /*
    Todo:
       We will get the list of Repos from the data layer later, first we need
       to set this up in the server . This function is not finished until we implement the server-side code
    */


  } catch (error) {
    console.log(error);
  }

}

Fetch and list Repos

You now have your user information and can now use that to get repos. Since you are making a GET request, you will need to send this request to another server route. The fetchRepos function will make a GET request to /api/repos, a function route that fetches the repos.

Create a functions/api/repos.js file, and export an async onRequestGet function to match the GET request.

functions/api/repos.js
export async function onRequestGet({ request, env }) {
   /** TODO:
   * 1. Get JWT from Localstorage
   * 2. Verify  and decode JWT
   * 3. Fetch repos
   */

}

First, you will get the JWT from the client, verify and decode it. You will then be allowed to fetch repos.

The request header contains the JWT, and then you will verify it with the .verify method, which takes the JWT token and your secret string as an argument.

If the JWT isn’t valid, you can return a 401 status code. If it is, use the .decode method to decode it, then use the ID from the payload as a key to fetch from Workers KV. You can then pass the user token to a showRepo function that fetches the repos.

functions/api/repos.js
import jwt from "@tsndr/cloudflare-worker-jwt";

import { myVerySecretString } from "./code";

import server_credentials from "../config";



export async function onRequestGet({ request, env }) {
  try {
    const token = request.headers.get("Authorization").split(" ")[1];


    // verify JWT
    const verifiedJWT = await jwt.verify(token, myVerySecretString)
    if (!verifiedJWT) {
      return new Response("Not valid JWT", {status: 401})
    }

    const decodedJwt = jwt.decode(token)


    const user = await env.kv_userDatabase.get(`${decodedJwt.id}`, "json")


    if (!user) {
      return new Response("User not found", {status: 404})
    }


    const repos = await showRepos(user.token);
    return new Response(JSON.stringify(repos));
  } catch (error) {
    return new Response(JSON.stringify({ error }));
  }

}

As mentioned, the showRepos function takes the user token as an argument, and then you will construct a URL with the RESOURCE_ENDPOINT and user repo query string. The response will return a list of repos as a JSON object.

functions/api/repos.js
async function showRepos(token) {
   const url = `${server_credentials.RESOURCE_ENDPOINT}user/repos?sort=created&direction=asc`;
   const res = await fetch(url, {
     headers: {
       Authorization: `Bearer ${token}`,
       "user-agent": "Pages Functions"
     },
   });


   const data = await res.json();
   return data;
 }

Show list of repos

The list of repos is now a JSON Object that can be used in the response in the client. By iterating over the response from the server, you will create an element using the createElement method and setting the HTML of the element created to the value of the response.

functions/api/repos.js
async function fetchRepos() {
  const server = "http://localhost:8788/api/repos";
  try {
    const res = await fetch(server, {
      headers: { Authorization: `Bearer ${localStorage.getItem("jwt")}` },
    });


    const data = await res.json();


    for( var i of data){
      const repo = document.createElement("div")
      repo.innerHTML = i.name
      document.body.appendChild(repo)
    }
  } catch (error) {
    console.log(error);
  }

}

Deploy to Cloudflare Pages

So far, you have been testing locally with Wrangler. To have a production site you can deploy to Cloudflare Pages using GitHub or GitLab. After creating a new repository, prepare and push your local application to GitHub.

Deploy you site by logging into the Cloudflare dashboard > Account Home > Pages and selecting Create a project. Select the new GitHub repository that you created and, in the Set up builds and deployments section, provide the following information:

Configuration optionValue
Production branchmain
Framework presetNone
Build command``
Build directoryclient

In the Environment variables (advanced) section add the variable name and value as it is in your .env file to be able to use in production and preview. Then click save and deploy

Update Homepage and Authorization callback URL in OAuth app

In your OAuth App you have set the authorization callback URL and HomePage URL to http://localhost:8788/ while working in dev mode, now you will have to update this URL to the URL of your deployed Pages project.

By doing this, you will enable your OAuth app interact with your project as expected.

Update KV bindings

After you have deployed your application, you will have to update your KV bindings. Currently, there is no way to automatically move the binding from your .mf folder to the dashboard.

To add your KV bindings Within Pages, first create your KV namespace by going to Workers > KV > Create Namespace.

After creating your namespace, choose from the list of KV namespaces that you created from the dashboard by going to your Pages project > Settings > Functions > KV namespace bindings.

Select Add binding and input a Variable name, and select a KV namespace from the list of your existing Workers KV namespaces. You will need to repeat this for both the Production and Preview environments.

Conclusion

In this tutorial, you built and deployed an OAuth app and its back-end logic using Cloudflare Pages with its Workers integration. You created serverless routes that handled Authentication, fetched user information, encoded user information as JWTs and used KV to cache the user information from GitHub.
